Cable drum-powered electric industrial trolley for a facility assembly line is an electric material handling cart. The design of the carriage of the cable drum transmission platform is mainly used to handle large cables. The transfer platform carriage can be designed according to the size of the large cable to facilitate the customer to transport the cable. The power supply mode of the trolley is cable power supply. This power supply method is more environmentally friendly and can save usage costs.
Under normal circumstances, the carriage can be used for a long time without restriction and has the advantages of a large load and long service life. Since the power supply method of the trolley uses a cable power supply, and the cable is not limited by the use time, the loading and unloading efficiency of the vehicle is high. Whether in terms of price or in terms of service life and cost-effectiveness.

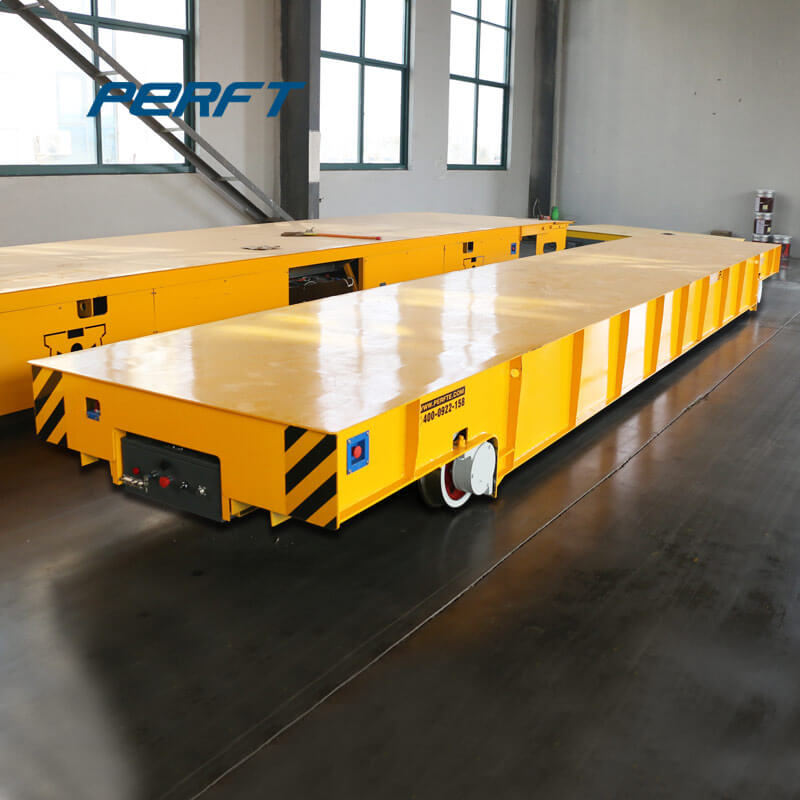

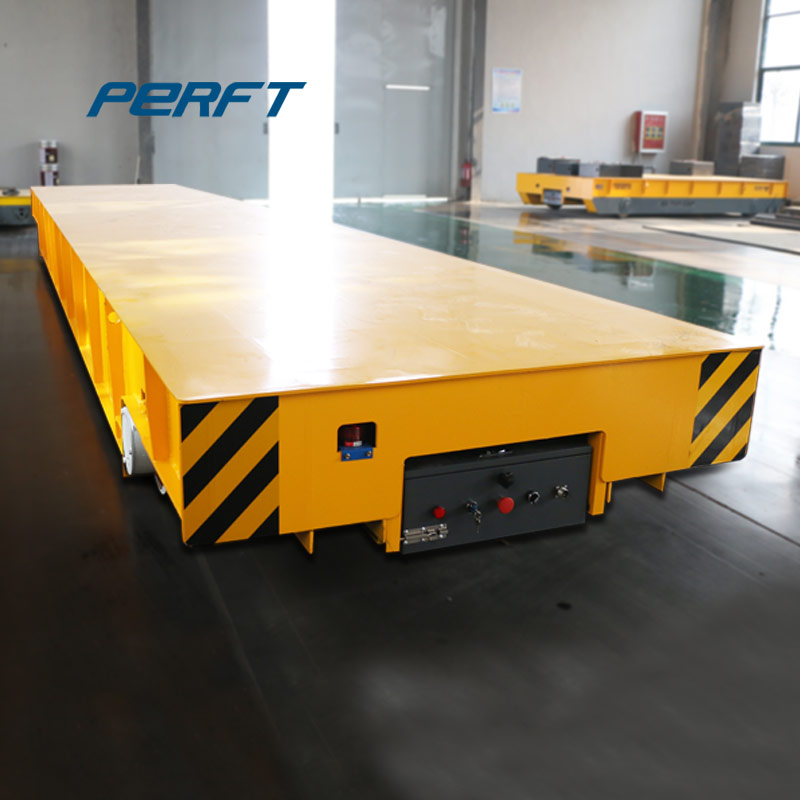

Our line of Rail Flatbed Trolley is designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing, and several others. These units are designed to operate on floor-mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane. This type of Electric Industrial Trolley is powered by the cable. It can be also powered by battery and low voltage rails. The powered source depend on the running distance.
Application—-Cable Drum Powered Electric Industrial Trolley
The Cable Drum Powered Electric Industrial Trolley can be applied in the assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in the workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod, and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort, etc), railway(rail maintenance, rail welding, train tractor).
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance (m) | 25 | 30 | 50 | 50 | 50 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Cable Drum Powered Transfer Trolley is powered by a cable reel, This type of power supply is more suitable for frequent transportation over short distances, and the smooth operation and simple maintenance of the transfer vehicle make it suitable for the transportation of materials and equipment within various factories.
