Case

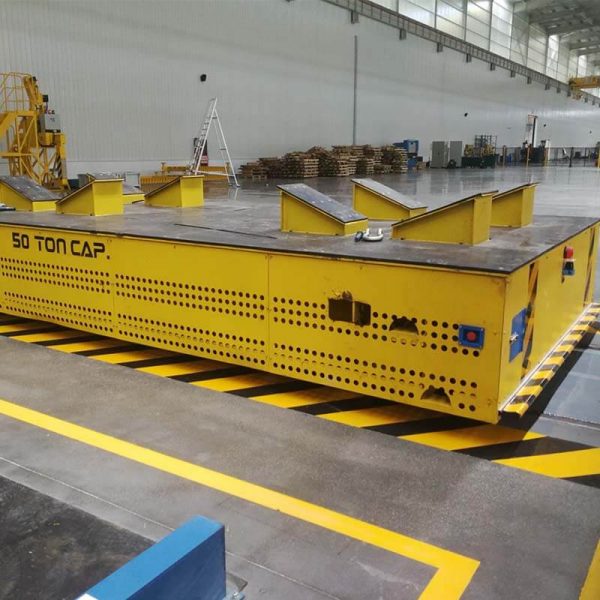

A steel customer in Wuhu. This company is mainly engaged in the steel coil and sheet processing industry. In 2020, we ordered a 50-ton low-voltage rail-powered flat car from our company. The flat car is mainly used for the handling of steel coils. The following is the basic flat trolley parameter: Conveying material: steel coil Control mode: rgv fixed-point docking Transport load: 50t Positioning method: rfid+plc Positioning accuracy: ±5mm Running speed: 30m/min Power supply mode: low-voltage...

The trackless electric flat trolley has a load capacity of 20T and relies on battery power. It is mainly used to transport large pressure vessel tanks. Its industries include chemical equipment enamel; Class I and II pressure vessels, tank engineering equipment factories, etc. are widely used and are widely used during transportation. V-shaped and U-shaped tooling racks can also be customized according to the diameter. The main advantage of our trolley is that it is very stable in transportat...

PHP Integrated Steel Mills Ltd is the largest pipe processing plant in Bangladesh. The plant is located in Feni, Bangladesh. It will be constructed in 2019 and will be put into operation in 2020. The company purchased a total of 12 rail transfer trolleys in 2019. The rail transfer trolleys are mainly used to transport coils between the warehouse and the pipe-making machine. The batch of rail transfer trolleys is powered by trolley wires, which are located in the grooves in the middle of the t...

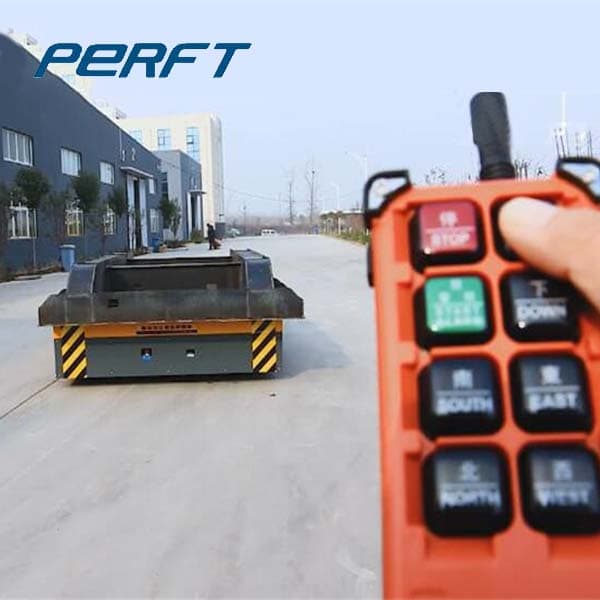

The BWP type trackless trolley is widely used as a short-distance transportation tool, and can also be used in the workshop to transport heavy objects across the span with a crane. Compared with rail cars, this series of flat cars do not need to lay tracks and travel routes are not restricted, which is convenient for the transportation of workshop workpieces and other items. It can be widely used in machinery manufacturing plants, warehouses, and metallurgical plants as workshop transportatio...

This is a rubber wheel platform carriage with a load capacity of 40T and a size of 6500*4200*1200 (including lifting platform). It is used in the Second Construction Company of China Nuclear Industry in Huizhou, Guangdong. This trolley platform has a lifting function and the lifting stroke is 0-200mm, the water tank produced in the main transfer workshop (the water tank is used for cooling in the nuclear power plant, and the weight is 32T). Due to the excessive size of the water tank, there i...

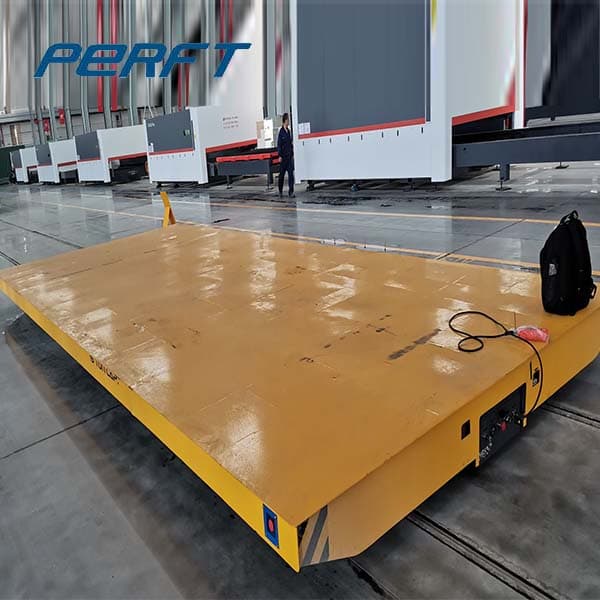

A general manufacturing company in Xiamen purchased an automated RGV transfer vehicle from our company on October 29, 2020. The automated RGV rail carriage weighs 1t and uses rail carriages and equipment for precise docking. The carriage has a special situation and high accuracy and shape requirements. The wheels are customized wheels, and the rail carriage can automatically adjust the accuracy during the traveling process. The sharp corners around the carriage body are rounded R8-R10 to avoi...

Shandong Meide Group Linyi Co., Ltd. is a foundry metallurgical company. The transfer carriage is mainly used for the transportation of molten steel. The transfer carriage bears 5 tons, the temperature of the outer surface of the molten steel ladle is 120 tons, and the transfer carriage table is equipped with refractory equipment. . The transfer carriage adopts wireless remote control and wired handle, and the transfer carriage positioning method adopts RFID positioning. There are a total of ...

Ladle crossing straddle transfer trolley requirements design: dual-drive reducer and motor, with ladle bracket, slag baffle plate, climbing ladder on the car, safety railing around, power cable lead device, ladle crossing straddle frame material Q235-A, ladle crossing The straddle car wheels are forged. All welds shall be inspected after welding, and the thickness of the steel plate at the main part shall not be less than 20mm. The motor and reducer of the ladle crossing carriage are connecte...

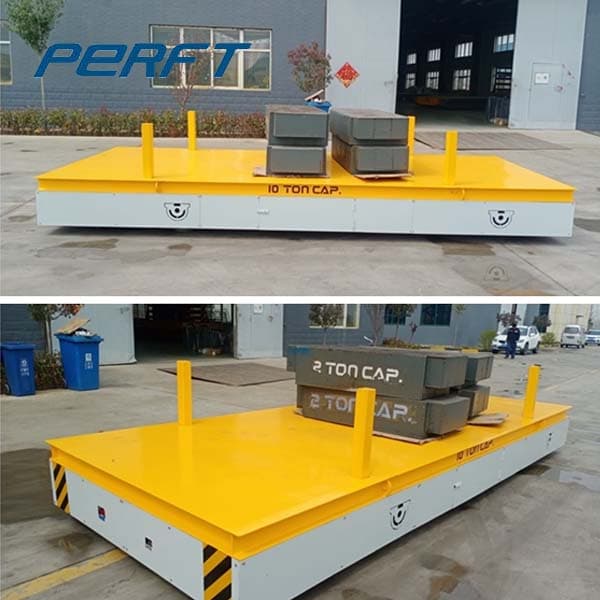

This site is the Industrial Trackless Transfer trolley, with a load capacity of 10T and a size of 4000*2200*550. The place of use is in the Henan Electric Department. The Trackless Transfer trolley in the workshop is mainly to transfer large open electrical appliances, isolating switches, and circuit breakers. The other is to carry out the high-voltage tests for individual electrical switches. Before the high-voltage test, a 30mm-thick high-strength insulating board material is laid on each c...

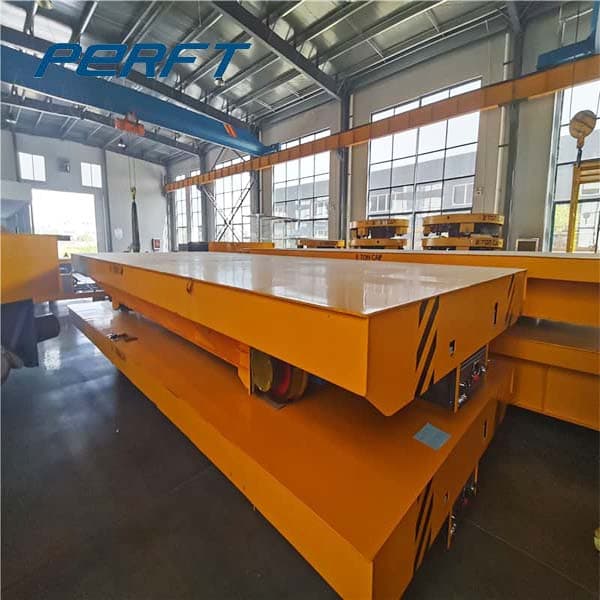

An Egyptian company purchased ten battery-powered rail transfer trolleys and one trackless transfer trolley from our company in August 2020. The company is the largest stone processing plant in Egypt. Customers use rail trolleys to transfer materials between different work stations, as well as between processing workshops and warehouses.   A battery-powered rail transfer trolleys generate energy from the battery. The battery is installed in an electric flat trolley. The battery powers th...
