PERFECT’s lithium battery-powered industry track custom transfer trolley, also known as cross flat trolley, transfer trolley, or electric flat trolley, has advantages as simple structure, easy operation and maintenance, large load capacity, and so on, these transfer trolleys are widely used in machine manufacturing and metallurgical factory matching up with lift cranes to transport heavy objects warehouse across. The rail transfer trolleys are suitable for various industries, steel mills and factories, paper roll plants, painting rooms, shipbuilding, new factory building project, machine processing line, heavy industry, airports and so on to transfer or handle material and equipment from one place to another, from warehouse to workshop.
Application:
Uses of lithium battery-powered industry custom transfer trolley:
Henan Perfect Handling Equipment Co., Ltd. is one professional designer and manufacturer of a wide range of transfer trolleys, industrial trailers, die trolleys, and lifting platforms that is used in metallurgy, manufacture, oil and gas, die shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others.
The lithium battery-powered industry track custom transfer cart is mounted on tracks, so you have to install the rails before using it. They can meet the most important demands: where places are very limited and pathways are extremely constrained.
The lithium battery-powered industry track custom transfer trolleys have been created and built for their utmost extent of working flexibility. They have no predefined pathway and can steer in any direction and can run on any kind of floor the power-driven trolleys are very beneficial to bring the heavy-duty where overhead cranes cannot reach the best method for all those appliances with delicate handling issues in limited space.
Advantage：
For smaller loads, manual carts can be dedicated to specific work activities such as shuttling materials. This often makes the trolleys more available for use. Transfer trolleys are more accommodating for moving long loads through restrictive passageways or doorways. For heavier loads, transfer trolleys are an excellent affordable choice for their ability to handle heavy loads. Transfer trolleys are compact in design and work well in areas with limited floor areas. Another advantage over lift trucks is how the trolley deck can be customized to suit specific loads.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kW) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

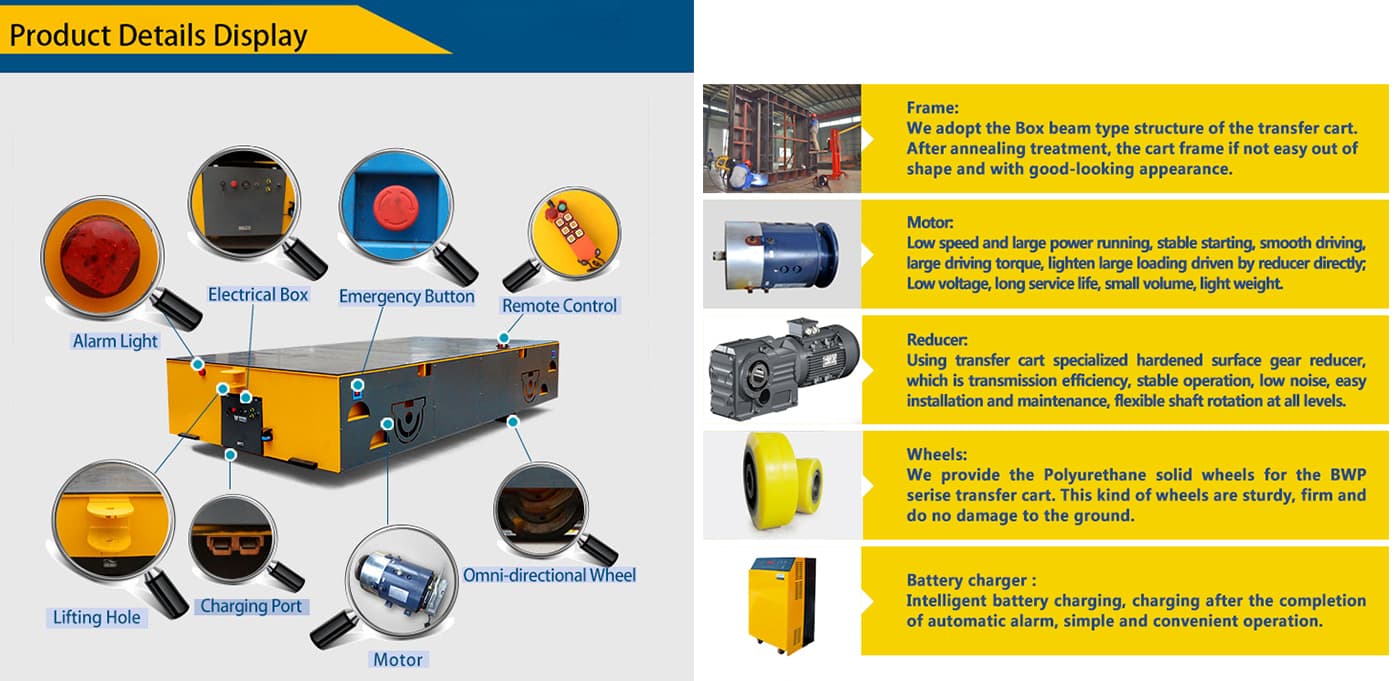

The heavy-duty battery-powered transfer vehicle is composed of batteries and is the power source for a series of flatbed vehicles. It powers the flatbed truck. The direct current flows into the distribution box and supplies the distribution box to the operating system and the motor.
