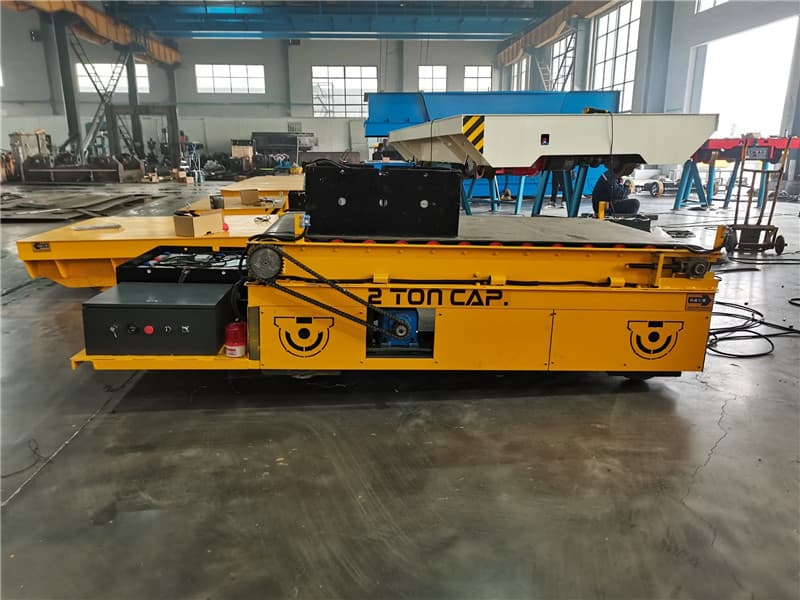

Main Technical Parameters of the Automatic Battery Trackless Transfer Car
Load capacity: 3T
Tabletop size: 3100x1500x762mm
Power supply method: battery power
Special request: additional pulley
Company Profile
The customer is an equipment manufacturing company with more than 40 years of experience in equipment manufacturing and has been engaged in the design and manufacture of mechatronic suspension conveying equipment, ground conveying equipment and cleaning and coating equipment professional company. The company has strong R & D design and manufacturing and installation capabilities, has developed a series of conveying equipment, coating equipment products available for customers to choose from, but also according to the user’s products can be customized production.
Main Technical Requirements
1: Overall load capacity of trolley 3T; size 3100*1500*762 (mm)
2: Automatic stop; stopping point accuracy ±5mm
3: Adding pulley; the pulley can carry 2T of cargo transportation.
4: Full-load continuous operation for 10 hours; (with backup battery 180Ah/48V)
Brief Description of the Project
The project is to need our enterprise production of automated battery trackless transfer cars and the customer’s production of the belt machine assembly line to work together to complete an automated transport process.
Firstly, the belt machine transports the material, the RGV trolley waits at the receiving point, the belt machine conveys the material to the RGV trolley pulley, after the RGV senses the material on board, the pulley on the trolley automatically runs to receive the material, the whole process is fully automated, no manual operation is required.
Customer Feedback
As an equipment manufacturing company, we also have the ability to manufacture equipment, only we are in a different field of focus, due to our own understanding of machinery manufacturing, we will be more strict in the selection of partners, Perfect Transfer Cart Company can finally appear in our partner list, because Perfect Transfer Cart Company professional R & D, production, manufacturing, sales department, their factory has enough strength to complete The final product is now running well on our production line and works perfectly with our equipment, we are very satisfied with their service and we will recommend Perfect Transfer Cart Company to our customers at a later stage so that more companies will know about this excellent Chinese transfer cart manufacturer.
