Rail tractor is a transport vehicle used for various rail carts. It is an intermittent and periodic working mode.
Through the traction of rail tractor, the unpowered or damaged carts on the track can be towed away in a timely and rapid manner, and the wheel conversion can be adjusted through the hydraulic system to enable transfer cart to walk on the track and the ground, thereby ensuring that rail tractor can tow other transfer carts on different tracks and reduce manpower and material resources.
Rail transfer cart has many features, including unlimited running time, suitability for long-distance transportation, safety, and flexibility, and high use frequency. Transfer Trolley support load capacity from 1-1,500 tons (custom).
Rail tractor body is a steel structure with flat steel plates and welded frames. The power supply system of rail tractor directly provides V360 AC power to the cable drum. The cable drum is a hysteresis coupling type to ensure that the cable is evenly stressed and not easily damaged. Rail cart is shut down immediately to check whether the battery rail tractor is running in a single phase, the bearing is damaged, the output shaft is incorrect, the bore is swept and other faults will cause rail tractor to produce abnormal noise. The noise position, height, and volume of different faults are different.
After starting rail tractor, do not run rail transfer cart in reverse quickly. Tractor on rail should be stable in one direction before switching directions, otherwise, the power mechanism of rail tractor will be damaged and rail tractor will be damaged. Usually, in order to extend the service life of rail transfer cart, we will give it a parallel sulfuric acid battery capacity restorer to reduce the sulfation of the battery. The connection of rail tractor should maintain good contact to avoid spark burnout or battery explosion. In particular, the balance beam track walking and support mechanism of rail tractor successfully solved the problem that the uneven road surface of the narrow cave caused the tractor rail wheel to be unable to effectively approach the track, resulting in slipping.

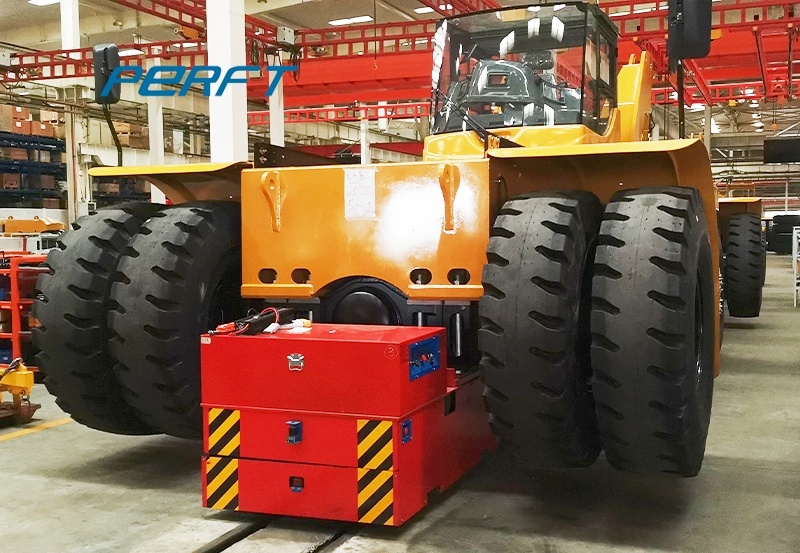

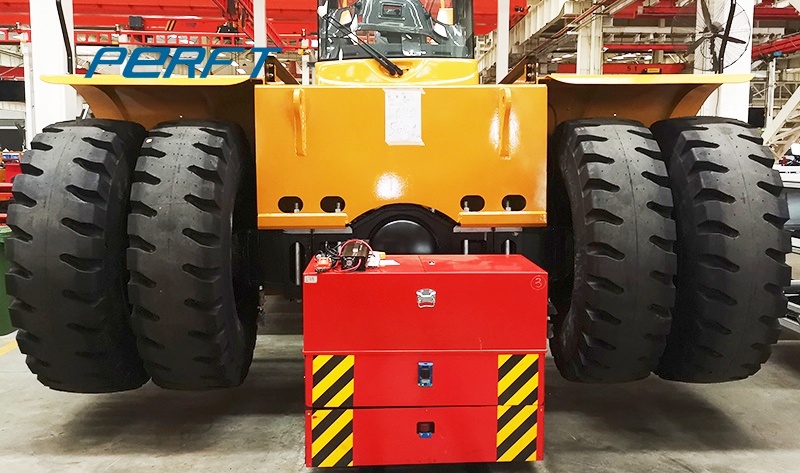

Rail tractor, which is used by customers to tow welded workpieces for painting. Rail transfer cart is 3 meters long, 1.5 meters wide and 0.56 meters high. It can tow and carry 10 tons of materials. It has a high degree of automation. The tractor can be moved forward and backward by manual remote control. It is equipped with a wireless AP terminal, which can communicate with the outside world to realize remote scheduling and automatic work.
Rail transfer cart uses imported PLC programmable controllers with encoders, proximity switches, travel switches, etc., and has 3 workstations planned. It will automatically stop when it arrives at the location, and can automatically connect to trailer for towing operations. Anti-collision buffer blocks are installed all around to prevent collision damage to transfer cart. Perfect can support customized lifting, weighing, RGV, and other functions.
