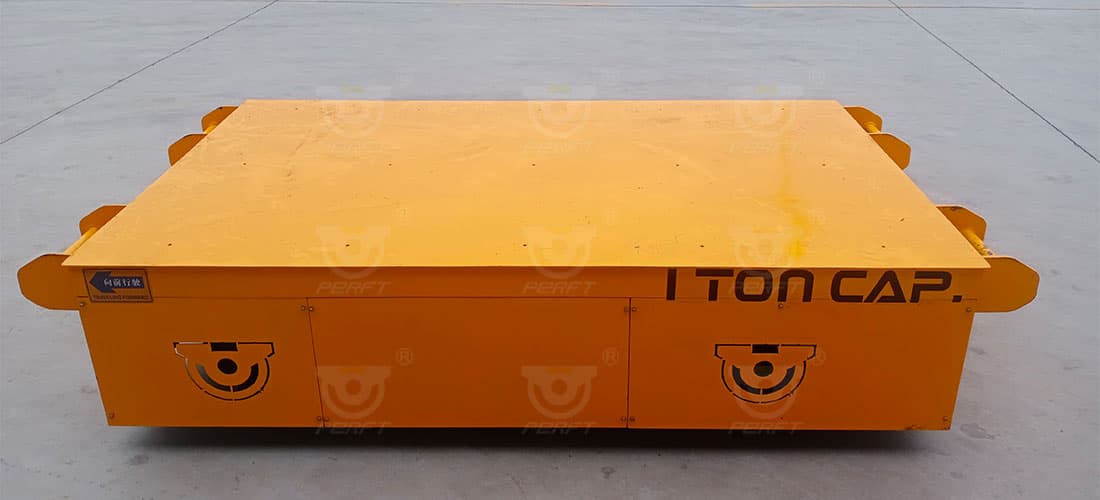

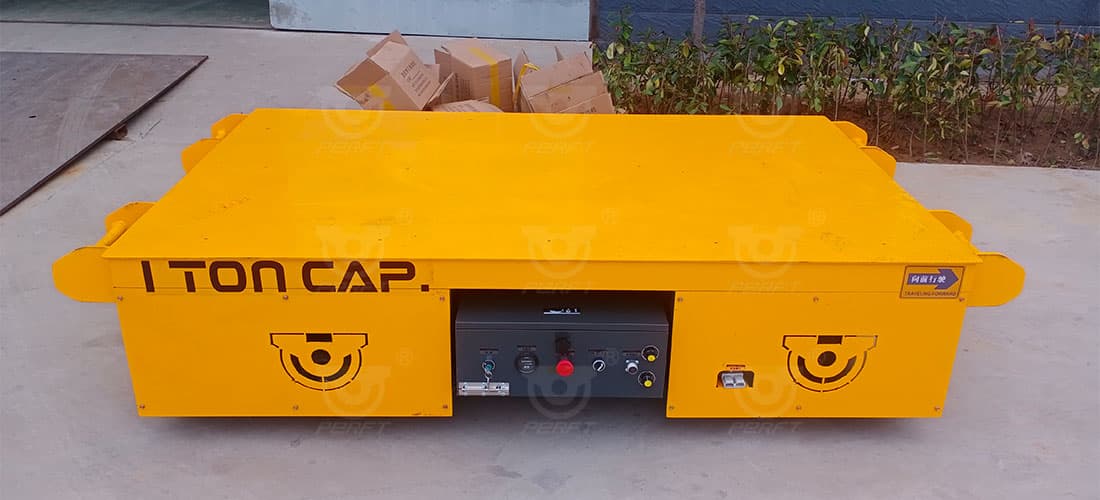

Transfer trolley model.
Power supply mode: The electric flat car is divided into the following models or series according to its different power supply modes.
BJT type cable reel powered rail electric flat car: powered by cable reel AC 380V. The cable reel is a hysteresis coupling type, to ensure that the cable force is uniform and not easy to pull bad. AC 380V provides power to the motor for lifting metallurgy on the flat car, and the motor drags the flat car to run. The cable reel automatically rolls up or releases the cable when the flat car is running, and the maximum running distance is generally less than 200m due to the length of the cable reel power supply.
BDG series low-voltage electric rail transfer cart: the ordinary voltage is reduced to 36 volts safety voltage and then connected to the rail to supply power to the flat car motor through the rail. Due to the use of 36V safety voltage, the highest safety performance; as no cable car outside without wiring, so not afraid of hot, not afraid of smashing, do not hinder cross transport, with these other flat car incomparable advantages to become the VIP (VIP) of the rail electric flat car line. But its higher cost, track construction requirements are strict, must ensure that the track insulation, more than a certain running distance when the track should add copper row compensation line, running distance longer must also increase the number of step-down transformers, and poor rainproof water is not suitable for use in open places.
BTL type cable-powered electric rail transfer cart: one end of the cable is connected to the ground power supply, through the cable sheave, traction wire rope into the control box, and then provide power to the YZ motor on the flat car, to drag the flat car running. But the running distance can not be too long, generally can not exceed 50m, too long easy to wind the cable.
BHX type safety slip wire powered electric rail transfer cart: open a trench on the side of the track, install safety slip wire in the trench, and lay a single surface on the trench with hinges fixed on the ground. The trench is hinged to the floor. The cover is lifted by the trench flap device installed on the trolley during operation. The cover is automatically put back on the ground after the electric trolley passes. It can ensure the smooth passage of trackless vehicles. The trench flap-type electric flat car is not limited by the running distance.
BXC type battery-powered electric rail transfer cart: powered by battery, the battery provides power to the DC traction motor, and the DC motor drags the flat car to run. Compared with AC motor, DC motor has the advantages of not being easy to burn, large starting torque and strong overload capacity. The running distance is not limited. It has greater safety performance and mobility flexibility than KPJ and KPD series flat cars, and the running distance is not limited, and there is no insulation requirement for the track, so the construction is convenient and low cost.
Transfer car specifications:
The specification of the rail electric flat car is determined by the load tonnage (excluding the weight of the car), generally divided into 5T, 10T, 16T, 20T, 30T, 40T, 50T, 60T, 80T, 100T, 120T, 150T, 180T, 200T, whose main purpose is to format the drive system components to choose; the load tonnage can also be customized non-standard, and its tonnage number can be selected in the range of 1 to 200 tons of tonnage can be selected arbitrarily, and its drive components in the absence of special requirements in the case of its still according to the standard product near the upward selection.
Other important parameters description: table size and table height, track spacing electric flat car manufacturers have a standard size, the basic difference between manufacturers, if you choose non-standard products must be clearly explained; track length according to the site use of each different, generally to the unit level of meters, is one of the important parameters of electric rail transfer cart, especially for the low-voltage electric flat car, track length directly affects the choice of hardware for the variable voltage system, and has a greater impact on the overall price. The operation mode by default is with the car handle control, select remote control or ground control mode need to be specially stated or noted in the specification model.
In addition to the particularly important power supply and load tonnage and table size, table height, track length, track spacing, the operation mode of the seven important parameters, there are several other general parameters, wheel set diameter, wheel number, car body weight, maximum wheel pressure, running speed, etc., the choice of standard products when these parameters need to be confirmed, such as special requirements must pay special attention.
